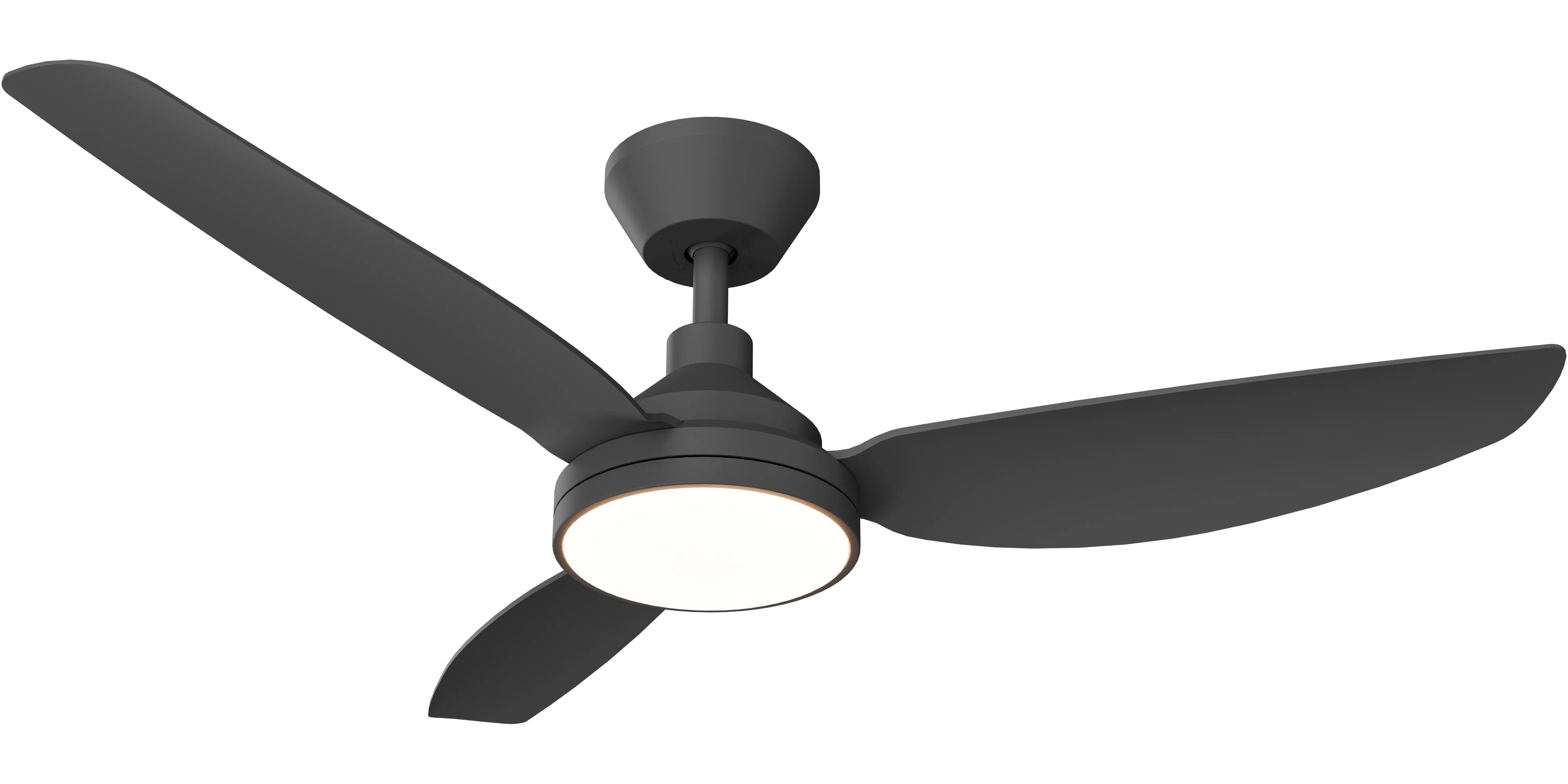

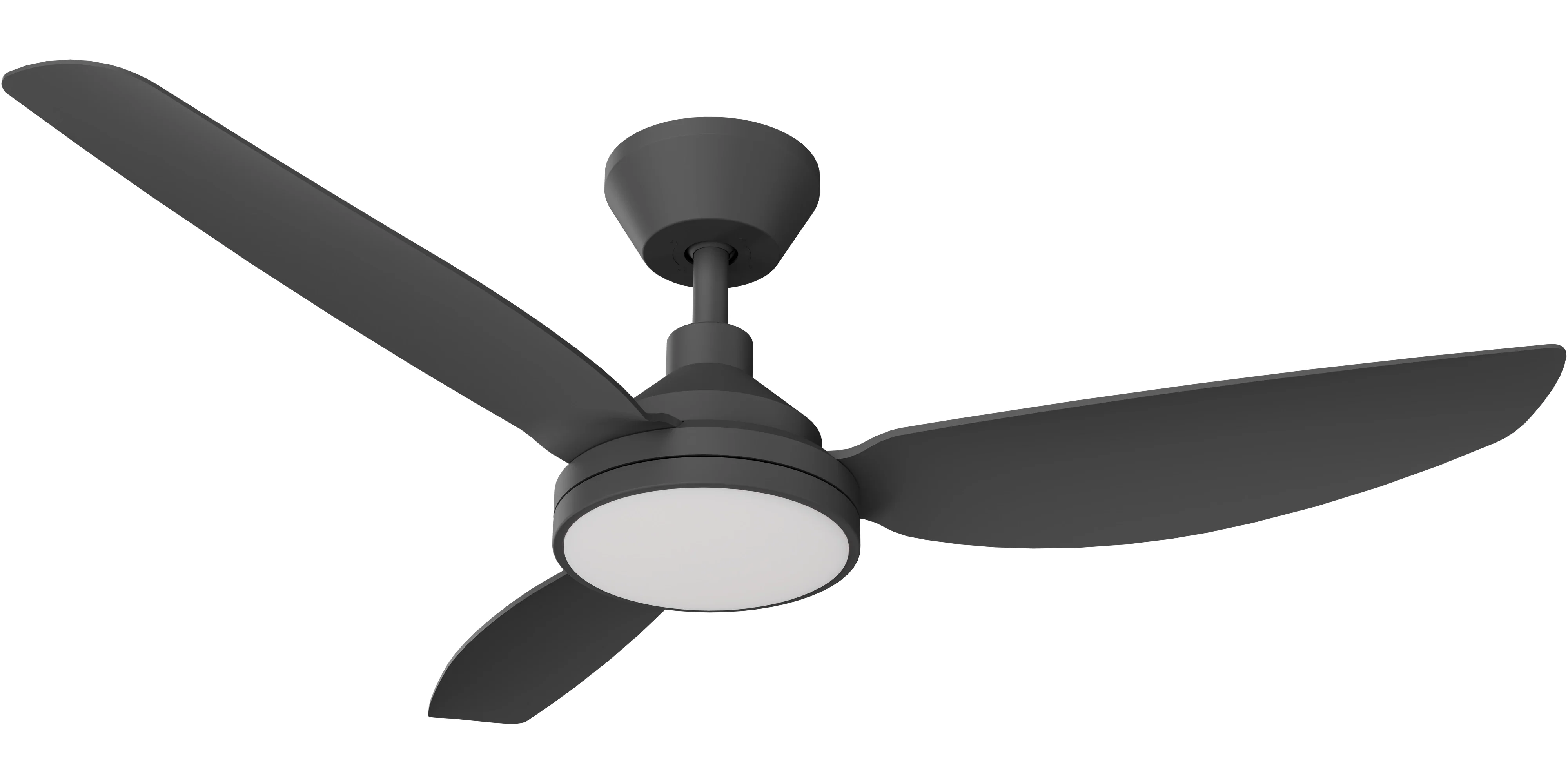

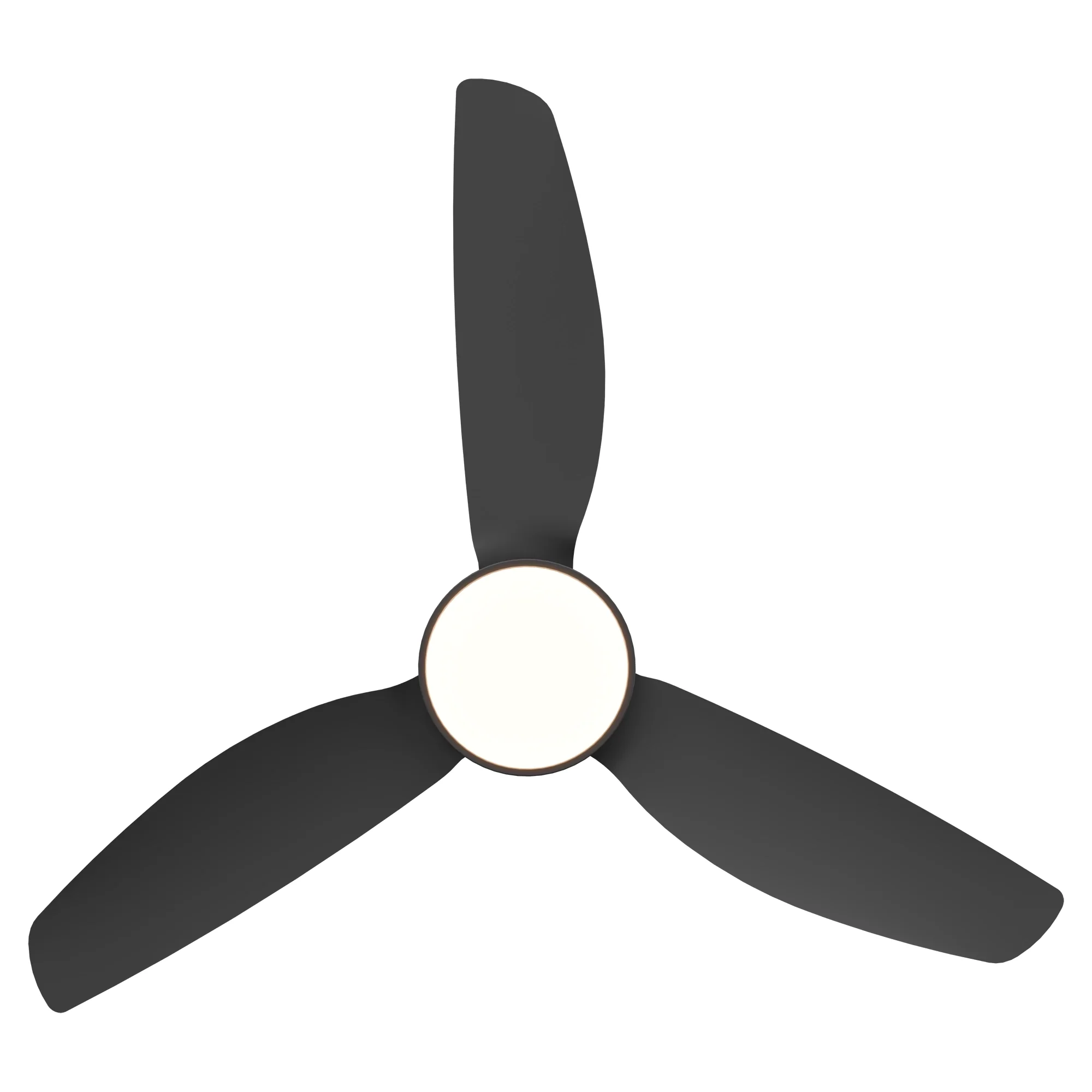

Introducing the Clayfield Ceiling Fan, the reliable trade fan designed for both residential and commercial projects. Designed with the trade in mind, the Clayfield makes installation simple, while still delivering strong performance and year-round comfort. Its clean design and reliable build make it a versatile fit for homes and businesses alike, indoors and outdoors. Backed by a 3-year in-home warranty and an additional 3-year parts-only warranty, the Clayfield is a budget-friendly fan that offers no-fuss, easy installation that saves you time without sacrificing performance and customer satisfaction.

Data Sheet

Blade Material:

• ABS Polymer

Finish:

• Black

Capability:

• Fully reversible for Summer/Winter

• Indoor/outdoor areas

• Ultra-efficient DC motor for whisper-quiet and low-cost cooling

• Supports ceiling slopes up to 14° as standard, with an accessory available for steeper slopes

 Light Information:

• 20w Built-In LED

• Colour Temperature: Warm White 3000K - Cool White 4000K - Daylight 6000K

• Lumens: 2017lm - 2175lm - 2304lm

• Dimmable: Yes, through ceiling fan remote

Remote:

• 6 speed remote control included

Power:

• 35w DC motor

Voltage:

• 240V

Airflow:

• 13,080m³/hr

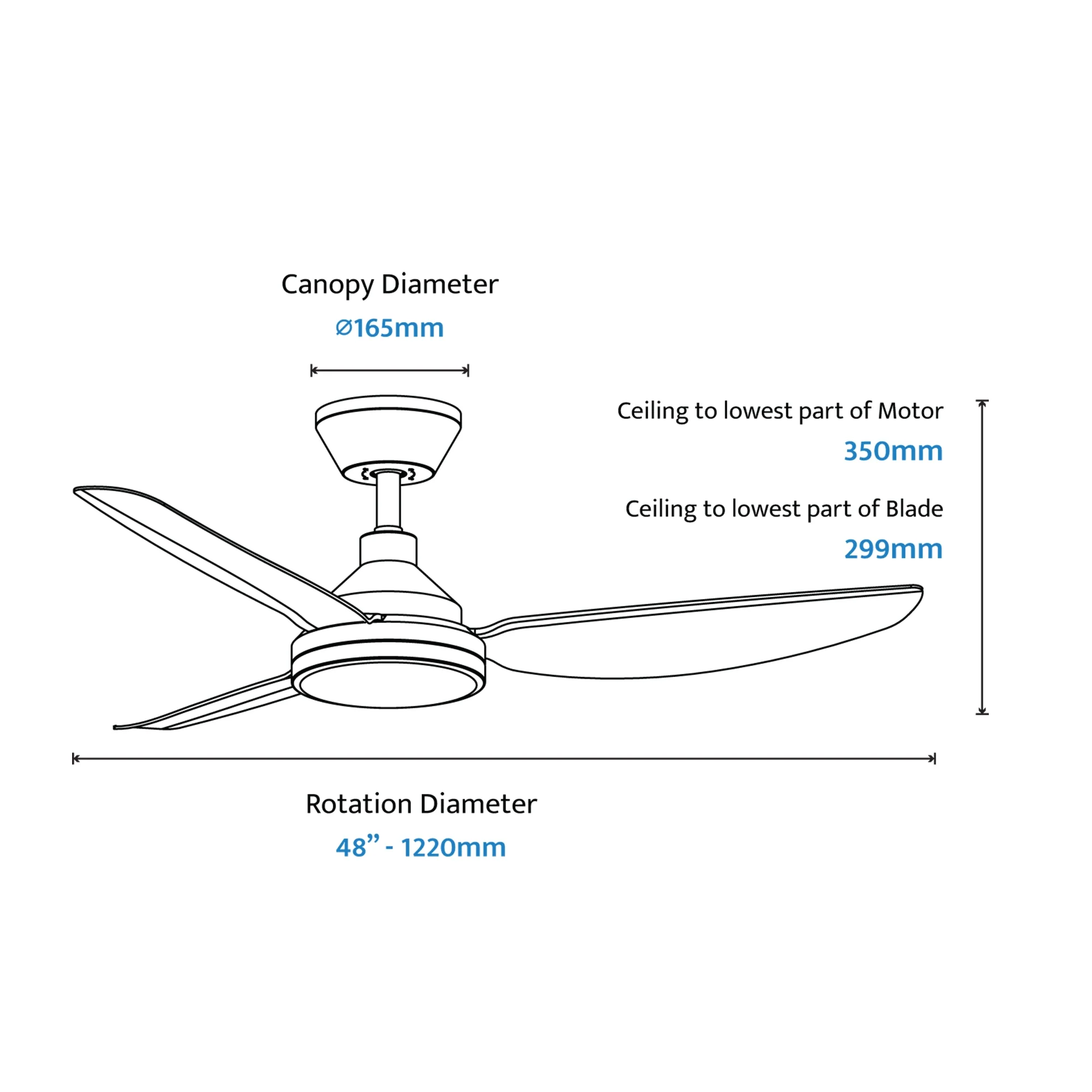

Dimensions:

• Overall Width: 1220mm

• Ceiling to Bottom of Blades: 299mm


• Ceiling to Bottom of Light: 350mm

Extension Rod:

• If you have steep raked ceilings, or they are higher than average, an extension rod may be used to maximise the effects of your new ceiling fan.

• Extension Rods are available as a separate part. They come in lengths of 900mm and can be cut to a suitable length by your electrician

Warranty:

• 3 Year In-Home, 12 Month Remote and Receiver PLUS 3 Year Parts Upon Product Registration.

• Suitable for indoors/outdoor enclosed areas

• All fans need to be installed by a licensed Electrician.

• If a fault becomes apparent please call the warranty number provided in the packaging of the ceiling fan, do not attempt to uninstall the ceiling fan.

• The Tax Invoice from the purchase of the fan, as well as the invoice from the licensed electrician will be required to claim warranty.
