Data Sheet

Material:

• ABS blades
• ABS Body

Finishes:

• Black


Capability

• 3 speed wall control
• Fully reversible for Summer/Winter
• Indoor / covered outdoor
• UV Resistant
• Anti corrosive

Light:

• 18w
• 3000K / 4000K / 5000K
• 1225lm/1450lm/1350lm
• Dimmable

Power:

• 75w

Airflow:

• 10,512m³/h (max)

Voltage:

• 240V

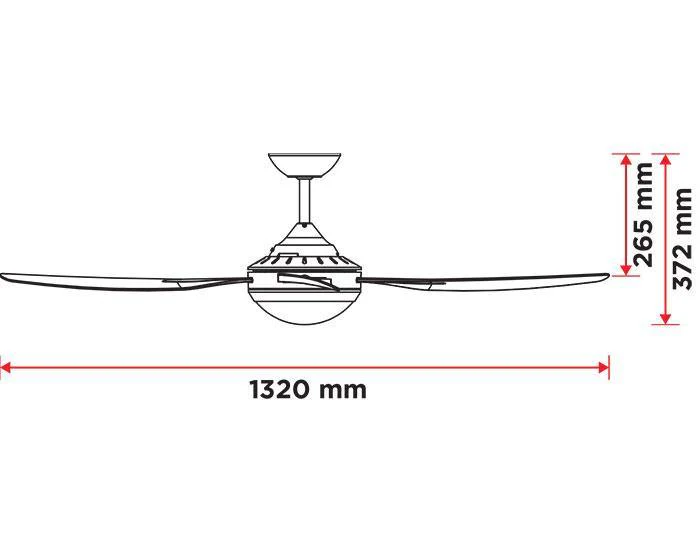

Dimensions:

• Overall Width: 1320mm
• Overall Height: 372mm

Remote:

• Remote controls are an added convenience for your AC fan and may make the installation process much easier. A remote control often removes the need for additional wiring if a lighting fixture already exists. If you are unsure if you require a remote or not feel free to contact us.

Extension Rod:

• Suits angled ceiling (Max 18° Pitch)
• If you have steep raked ceilings, or they are higher than average, an extension rod may be used to maximise the effects of your new ceiling fan.
• Extension Rods are available as a separate part. They come in lengths of 900mm & 1500mm and can be cut to a suitable length by your electrician

Warranty:

• 2 year in home warranty + 4 years parts warranty
• suitable for indoors/outdoors/coastal
• All fans need to be installed by a licensed Electrician.
• If a fault becomes apparent please call the warranty number provided in the packaging of the ceiling fan, do not attempt to uninstall the ceiling fan.
• The Tax Invoice from the purchase of the fan, as well as the invoice from the licensed electrician will be required to claim warranty

Instruction Manual:

• Link
